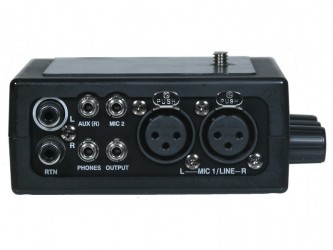

FMX-DSLR – 2 Channel Portable Mic/Line Mixer for DSLR Cameras
- 2 balanced XLR mic/line inputs
- Mini jack stereo microphone input
- Mini jack mono AUX input
- Stereo mini-jack output for DSLR cameras
- Switchable 48V phantom power and limiting
- RCA camera returns for audio monitoring
- Headphone out with level control
- AGC switch for noiseless operation
- Camera/tripod mountable
- 4x AA battery powered
The all New FMX-DSLR is a Professional Low Noise Audio Mixer for DSLR Cameras. With the same advanced circuitry as our top-of-the-line mixers the FMX-DSLR is designed for the demanding needs of Professional DSLR users. The small, battery operated (4-“AA”) mixer can be attached directly to a camera or tripod with the integral threads. The FMX-DSLR has the following features: AGC switch for noiseless operation, 2 XLR microphone inputs with individual level controls and switchable phantom power, stereo mini jack microphone input, mini jack line level input, stereo mini plug microphone output and headphone output with level control. LED peak level indicators, input return function (RTN) to monitor camera audio and a power switch with power on/low battery LED.
Specifications
- Frequency Response
- Main and Unbalanced Output: 20-20,000Hz (+0/-1dB)
- Monitor Output: 50-20,000Hz (-1dB)
- Noise Level
- Left & Right Channel: -110dB
- T.H.D.: less than 0.01% @ 1 KHz
- Inputs
- Line/Aux Low setting: Max Input Level +22dBu Max Gain -22dB
- Line/Aux Hi setting: Max Input Level +6dBu Max Gain -6dB
- MIC1/MIC2 Low setting: Max Input Level 0dBu Max Gain 0dB
- MIC1/MIC2 Hi setting: Max Input Level -16dBu Max Gain +16dB
- Phones Output
- 3.5mm Stereo: -3.5dBu (32-ohm load)
- Maximum Output Level
- Unbalanced Output (3.5mm) +0dBu (2K ohms)
- Battery Type/Duration
- 4-”AA” Alkaline
- 15 hours with phantom power off
- Current Drain
- 40mA nominal (Phantom Power Off)
- 80mA maximum (Phantom Power On)
- Phantom Power Voltage: 48VDC (+/- 2VDC)
- Size
- 44H x 105W x 105D mm (1.75 x 4.2 x 4.2 inches)
- Weight w/o Battery: 16.6 ounces (470 grams)
- Гарантия: 24
- Цвет: Black
- Аксессуары: yes
