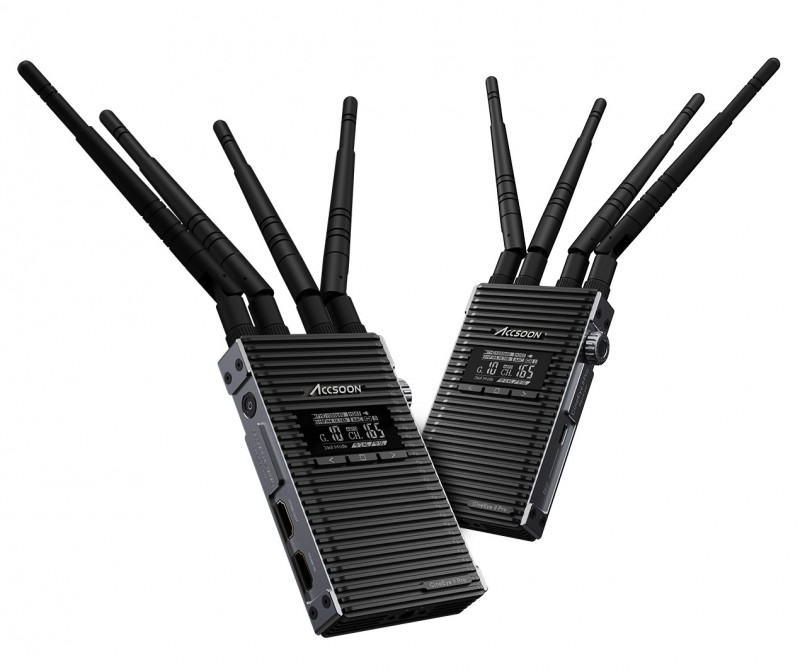

Accsoon CineEye 2 Pro Wireless Video Transmitter

Short profile

Accsoon CineEye 2 Pro Wireless Video Transmitter

HD wireless image transmission system

Sender and receiver

Connection for up to 4 devices

Combination of 2.4 GHz and 5 GHz dual-band transmission

low energy consumption

Product description for Accsoon CineEye 2 Pro Wireless Video Transmitter

Wireless video transmitter and receiver

The Accsoon CineEye 2 Pro consists of a powerful transmitter and an excellent receiver. The transmitter sends the video image to the receiver via a 2.4 GHz + 5 GHz WiFi dual-band connection. This connection can cover a distance of 350 m and has a maximum delay of only 0.06 s.You can connect an external monitor to the receiver to display the video image with audio. Up to 4 devices can be connected to one transmitter. It is also possible to use the transmitter to send a direct signal to up to four devices such as a smartphone or tablet. Streaming to mobile devices has a shorter range as it only uses 5 GHz.

Connect 4 external devices wirelessly using a 5 GHz WiFi connection
After the CineEye 2 Pro receiver has received the signal, the image and sound from the camera are streamed directly to 4 external devices. The image (1080p Full HD image resolution) is received on external devices via a 5 GHz WiFi connection and the CineEye app. These can be iOS and Android devices such as smartphones and tablets. A mixture of these devices is also possible. A connection between the video transmitter and the receiving devices with the CineEye app is established via a 5 GHz WiFi connection.

Lightning-fast connection with 2.4 GHz + 5 GHz dual band
The combination of 2.4 GHz and 5 GHz WiFi connection enables the transmitter to transmit information with minimal delay and to cover a large distance. The WiFi signal that the CineEye 2 Pro transmitter sends out with its four antennas has a range of up to 350 meters in open terrain. The receiver is also equipped with four antennas to receive the signal. The CineEye 2 Pro comes with an additional antenna and two cold shoe / thread adapters.

Combine signals
With the CineEye 2 Pro you can turn any mobile device into a wireless HD monitor. Those involved can view the recordings from a short distance on a smartphone or tablet, while the cameraman can do his work undisturbed. The "pairing" of sender and receiver takes place almost automatically. Multiple transmitters can be used in the same room. This is done by setting up a group. The sender and receiver in the same group communicate with each other on their own channel. In this way you can use several transmitter / receiver groups without these signals interfering with each other.

Low energy consumption
The CineEye 2 Pro transmitter and receiver both have a battery plate on which you can insert a Sony NP-F550, NP-F750, NF-F970, Hahnel HL-XL581 or Hahnel HL-XL982 battery. These batteries are not included in the scope of delivery. A full NP-F970 battery lasts 12 hours and you can read the battery indicator on the OLED screen. In addition, the CineEye 2 Pro has a DC input of 7.4 V to 16.8 V. It is possible to change the power supply during use by means of a "hot swap". The energy consumption of the CineEye 2 Pro is so low that no internal cooling system such as a fan is required. The CineEye 2 Pro can be used with all common DLSRs and with professional film cameras.

Video options from the CineEye app
The CineEye app offers the viewer various options to edit the image live. These are options such as black and white image, black and white, or focus peaking. The most important option is the ability to load different LUTS. With a LUT, you change the color correction of the live view so that a potential customer can roughly assess the end result.

Further product
features : Video formats: 1080p 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60fps 1080i 50 / 59.94 / 60fps, 720p 50 / 59.94 / 60FPS - 576P 50fps - 480P 60fps
wireless range: approx. 350m
WiFi: 2, 4 GHz + 5 GHz WiFI Dualband Simultaneous Technology
Frequency range: Combination of 2.4 GHz and 5 GHz WiFi connection
Latency: 0.06 s
Battery: exclusive battery plate or DC input of the NP-F series 7.4 - 16.8 V
Operating temperature: -10 to 40 ° C
Compatible with: Android and iOS (up to 4 devices at the same time)
Connections: 1x HDMI type A input (transmitter), 2x HDMI type A input and output (receiver)
Color: black
Material: aluminum / plastic
Dimensions (WxHxL): 77 x 31 x 125 mm
Weight: 225 g
