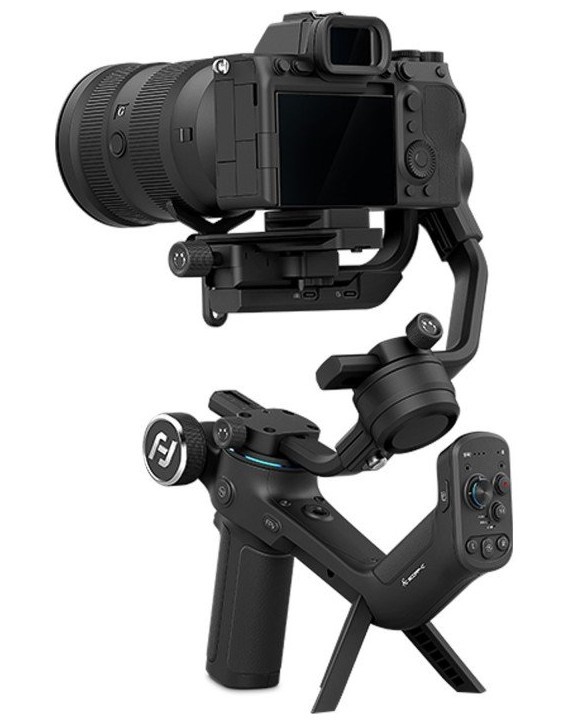

The FeiyuTech Scorp-C is a state-of-the-art gimbal designed for DSLR and mirrorless cameras with a maximum weight of 2.5 kg. Two handles allow comfortable and stable guidance of the camera in different positions. The device can be controlled with buttons and a built-in joystick or using a mobile app. The gimbal is compatible with follow focus systems. An ergonomic knob is placed on its housing to control motor movements or other parameters. Automation and special modes will allow you to realise complex shots and discover new layers of creativity. The built-in rechargeable battery will provide up to 13 hours of uninterrupted operation. To place the device on a flat surface, you can use the fold-out stand or the included tripod.

Main product features

• handheld gimbal designed for use with VDSLR cameras weighing up to 2.5 kg

• ergonomic control panel consisting of buttons and a precision joystick

• LEDs indicating charge level, operation mode and Bluetooth connectivity

• management of camera or camcorder parameters (aperture, ISO, focus, resolution, frame rate) for selected models

• remote control via the free Feiyu SCORP app (available on Google Play and App Store)

• 5 multi-axis modes (panning, lock, tracking, multi-axis tracking and fast response)

• special fast response mode (Flash Mode) to set the gimbal to follow the operator’s movements even more dynamically

• a high-performance processor supporting state-of-the-art stabilisation algorithms for ultra-precise movement control

• additional handle that also serves as a tripod

• 5 adjustment points for ultra-precise camera balance

• fold-out stand

• fold-out stand built into the gimbal

• multifunctional cover

• Multifunctional “Magic Wheel” knob to control gimbal movements, as well as settings, focus or zoom (when working with a follow focus system)

• quick-to-operate locks allowing selected axes to be locked

• possibility to lock axes for transport

• Arca-Swiss standard spacers and quick-mounting plates

• Portal locking system

• 1/4″ threads for installation on tripods, monopods or slides

• Special sliders for mounting the camera on the ground

• special sliders with indicators for faster and more convenient preparation of the gimbal for use with the camera

• possibility to connect an external follow focus module (for zoom or focus control)

• define 2 different axis positions and switch between them using the “A” / “B”

buttons

• “FPV” button for quick switching between different modes

• “trigger button” for convenient operation of the device

• support for fast charging technology (5 minutes of charging is enough to extend the operating time by 30 minutes!)

• Up to 13 hours of operation on a single charge

• Read more

• device charging time of only 1.6 h

• possibility to power the gimbal with a power bank

Unparalleled stabilisation quality

The Scorp-C from FeiyuTech is the next member of the Scorpion family – precise and versatile gimbals that redefine what true ergonomics and superior user comfort are. The device is compatible with mirrorless and DSLR cameras weighing up to 2.5kg. This versatile device opens up a whole new range of possibilities for video makers and photographers. The Scorp-C provides even more precise movement control and greater shock reduction. State-of-the-art electronics combined with brushless motors, a huge number of functions and the ability to control cameras make the presented gimbal the best choice for youtubers, vloggers and video creators who value ultra-mobility and intuitive operation.

Ergonomic control panel

The Scorp-C model features an ergonomic control panel where you’ll find function buttons, a precision joystick and LEDs indicating charge level, mode of operation and Bluetooth connectivity. It is here that you select which axes you want the device to operate within, centre the gimbal, perform a 180º (Pan) rotation, start recording or take a photo. Combined with the “Magic Wheel” knob and joystick, you get a powerful tool that will enable you to work comfortably and conveniently.

5 different stabilisation modes

The FeiyuTech Scorp-C handheld gimbal for VDSLR cameras offers 5 stabilisation modes. With these, you can adapt the characteristics of the device to the specific shots you want to take. The fine-tuned brushless motors allow you to achieve perfect smoothness of movements, varying speeds of reaction and changing the position of the camera within the selected axes.

• Panning mode (PF) – in this mode, the camera smoothly follows the rotation of the handle while maintaining a constant position relative to the horizon line.

• Lock mode (Lock) – the camera lens maintains a fixed direction – rotation on all axes is locked in a predefined position.

• Tracking mode (PTF) – in this mode, the camera smoothly follows the rotation of the handle and in up-down directions.

• Mode of multi-axis tracking (FPV) – the camera lens smoothly follows the movement of the gimbal handle in all three axes.

• Fast response mode (FFW) – the camera quickly and dynamically follows the movement of the handle while maintaining a constant position relative to the horizon line.

Fast and convenient balancing

The FeiyuTech Scorp-C offers up to 5 balance adjustment points. Thanks to them, you can balance your camera perfectly. This task will be even easier thanks to special movable markers with a red dot, with which you will determine the optimal position for the rails. The gimbal is also equipped with ergonomic locks. All these facilities will allow you to quickly and conveniently prepare the device for work. And if you have never worked with a gimbal before, check out the instructional videos in the Feiyu SCORP app. With the short step-by-step videos, you will learn how to get the device ready for use and learn all its functions.

Magic Wheel

The “Magic Wheel” dial is a proven way to make your gimbal’s movements within the selected axis even more precise. You can also use it to control a follow focus module purchased separately. This additional accessory will enable you to create even better films! The follow focus is ideal for demanding and complex shots where you can easily change the focus point or use the zoom. With the FeiyuTech Scorp-C, your personal sharpener will always be within the reach of your left hand!

Remote control via app

In the Google Play (Android) and App Store (iOS) you will find the free Feiyu SCORP app. With it, you can quickly personalise your device’s settings and remotely control its movements. The app will allow you to configure the sensitivity of the motors and the speed of response, automatically calibrate the gimbal, download software updates, and run the joystick on the touchscreen of your smartphone.

Up to 13 hours of operation on a single charge

The FeiyuTech Scorp-C handheld gimbal for VDSLR cameras has a built-in 2500 mAh battery. It can provide up to 13 hours of continuous use as long as you balance the device properly. Convenient charging is provided by the USB-C port. Thanks to Quick Charge technology, it will take around 1.6 h to fully replenish power. Just 5 minutes of charging is enough to extend the working time of the gimbal by 30 minutes! And if you’re planning a really long shooting day, the FeiyuTech Scorp-C will easily connect to a power bank that can power the device during use.

Great versatility of use

Working with the FeiyuTech Scorp-C gimbal doesn’t have to be limited to “handheld” shots! The 1/4″ thread will allow you to install the device on a tripod, slider or monopod. For the sake of the highest comfort of work, an additional handle has also been taken care of, which you will find in the set. It will allow you to grip the gimbal with both hands, providing even more certainty in guiding the movements of the camera. The accessory also acts as a tripod, which will come in handy when balancing. But that’s not all! If your luggage won’t accommodate a mini tripod, the Scorpion’s fold-out legs will replace it, allowing you to set the gimbal on a flat surface.

Gimbal that sparks creativity

The FeiyuTech Scorp-C isn’t just about smooth camera movements and excellent shot stabilisation. Unique modes will allow you to create even more creative videos and photos.

• Automatic rotation (Auto rotation) – Create unique shots where you move closer or further away from your filmed subject and the camera rotates 360º around the lens axis in the process.

• Panoramic shots (Panorama) – Use the camera’s ultra-precise stabilisation to take a panorama made up of several shots.

• Programmed motion sequence (Track video) – Program camera movements for several points and the device will ensure you get repeatable shots.

• Timelapse – Capture the passage of time with a technique that combines photography with film.

• Hyperlapse – Program movement between two points to create a time-lapse movie in which not only the time of day or the position of the objects being filmed changes, but also the angle of the camera.

• Motionlapse – Program even more points that determine the position of the lens in relation to the objects being filmed and discover new ways to tell a story with time-lapse video.

• Portrait mode (Portrait mode) – Conveniently change the orientation of the camera to record videos or take photos horizontally or vertically.

• Selfie mode (Selfie mode) – With one click, point the lens towards you to take a souvenir selfie or record a vlog.

Definition of A and B points

Being able to store the positions of all the axes of the gimbal and activate these settings using the “A” and “B” buttons is a real “gamechanger” when it comes to shooting video footage. Just one click is enough! If you work with a follow focus system you will appreciate this solution even more. Thanks to the predefined focus points, you can quickly and conveniently render the depth of your frames. Two different focus settings, which you activate with a single click, will make your work even more convenient, without having to turn the ring every time you want to highlight a specific object in the foreground or background.

Compatibility

• cameras and camcorders with a maximum weight of 2500g

• support for additional functions when the camera is connected to the gimbal using the cables included in the kit:

  • Sony: RX100 III, RX100 IV, RX100M5A, RX100 VI, RX100 VII, ZV-1, DSC-WX500, DSC-HX90, DSC-RX10 III, DSC-RX10 IV, ZV-E10, a6100, a6300, a6400, a6500, a6600, a7S, a7S II, a7R, a7R II, a7R III, a7R IV, a7R M4A, a7 II (A7M2), a7 III (A7M3), a9, a9 II, a7C, a1, a7S III, FX3, a7 IV (A7M4)

  • Canon: EOS M50, EOS M50 Mark II, EOS M6 Mark II, Powershot G7 X Mark III, EOS 200D II, EOS 850D, EOS 80D, EOS 90D, EOS 6D, EOS 6D Mark II, EOS 5D Mark III, EOS 5D Mark IV, EOS 5DS R, EOS RP, EOS R, EOS R5, EOS R6

  • Panasonic: GH5S, GH5, GH4, G9, S5

  • Nikon: Z7, Z7 II, Z5, Z6, Z6 II, Z50, D7500, Z fc

  • Fujifilm: X-T20, X-T30, X-A5, X-A7, X-T100, X-H1, X-T3, X-T4, X-S10, X-T200, X-E3

• Sigma: FP

Specification

• model: FeiyuTech Scorp-C

• operating voltage: 6.8 V – 8.4 V

• battery: built-in (2500 mAh)

• working time per charge: up to 13 h

• charging time: approx. 1.6 h (Quick Charge support up to 18 W)

• controls:

  • control panel (buttons + joystick)

  • feiyu SCORP mobile app available on Google Play and App Store

• axis rotation range:

  • Tilt: 320°

  • Roll: 320°

  • Pan: 360°

• Ports:

  • 1 x USB-C port for charging the gimbal

  • 2 x USB-C port allowing connection of follow focus motors responsible for focus or zoom

  • 1 x USB-C port for communication with the camera

  • 1 x USB-C port for image transmission

• Mounting points:

  • 1/4″ thread (allows the included folding tripod to be screwed in to act as a handle)

• 1/4″ thread located on the mounting plate, allowing a lens support to be installed

• 1/4″ thread allowing the installation of a multifunctional ARRI-standard rosette adapter mount

• dimensions:

  • folded (in the “for balancing” position): 314.4 x 210.7 x 243.3 mm

  • folded: 280.8 x 266.2 x 71.3 mm

  • quick-assembly plate: 115 x 38 x 10 mm

  • spacer plate: 50 x 38 x 10 mm

• lifting capacity: 2.5 kg

• weight: 1.2 kg

Set contents

• FeiyuTech Scorp-C handheld gimbal for VDSLR cameras

• folding and detachable tripod that also serves as an extension handle

• Quick-mount plate (Arca-Swiss standard)

• distance plate (Arca-Swiss standard)

• lens support

• bolt to allow lens support to be mounted

• set of screws for mounts

• set of cables:

  • USB-C – USB-C

  • USB-C – TRS (2.5 mm)

  • USB-C – 2.5 mm remote shutter release port (Panasonic)

  • USB-C – Micro USB

  • USB-C – remote shutter release port (Sony)

  • USB 2.0 – USB-C
