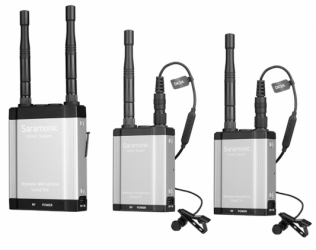

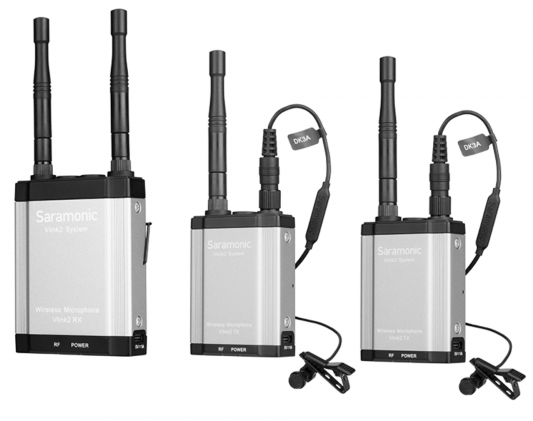

The Saramonic Vlink2 is a versatile and easy-to-use wireless audio transmission kit. It’s the ideal choice for people who post on YouTube, work in TV, co-host conferences or stage performances, or record streams, interviews or podcasts. The revolutionary ‘talkback’ feature allows for two-way voice communication. The person in front of the camera can move up to 100 metres away from the operator and still be in contact! The receiver also allows you to conveniently monitor recordings from your headphones. One charge of the microports from the USB-C ports is enough for a whole day of shooting. The kit also includes Saramonic DK3 professional tie microphones, a carrying case and a range of useful accessories and cables.

Main Product Features

• a wireless audio transmission kit with 2 transmitters and 1 receiver

• ideal for recording: interviews, reports, live broadcasts and videos published on YouTube or TV

• designed to work with digital SLRs, mirrorless cameras, camcorders, smartphones, audio recorders, mixers or audio interfaces

• revolutionary function enabling the sound engineer to communicate with the person appearing in the recording (“talkback”)

• real time monitoring (listening) from the level of headphones connected to the receiver

• included small earphone with microphone connected to receiver

• possibility to connect headphones (TRS or TRRS) to transmitters

• 2 Saramonic DK3 tie microphones included

• high-contrast OLED display for convenient control of recording parameters

• removable antennae

• removable antennae with adjustable 360˚ tilt angle

• controlled antennae

• Conveniently switch between MONO and STEREO audio

• receiver and transmitters equipped with built-in rechargeable battery providing up to 20 hours of continuous recording

• emission quality sound transmitted digitally (2.4 GHz)

• 3.5 mm mini jack sockets equipped with a plug-in lock, which prevents accidental disconnection of the microphone or headphones

• the possibility of powering the microports from the power bank

• included fasteners for convenient attachment of transmitters to a belt and a cold shoe adapter for the receiver

• a rigid protective case for convenient transport and safe storage

Multitude of applications

The Saramonic Vlink2 is a small and lightweight kit for video creators who want to conveniently capture broadcast-quality audio with cameras, camcorders, smartphones or audio recorders. The package, which includes a receiver, 2 transmitters, tie microphones and additional accessories, is ideal for recording webinars, streams and live broadcasts, creating content for the TikTok, Snapchat or Instagram platforms, as well as producing vlogs and TV content. You will use the Saramonic Vlink2 set wherever you need to record audio from two independent sources (e.g. an interview). The microports are ultra-lightweight, so you can easily take them on any trip!

Emissive sound quality

In the Saramonic Vlink2 (Kit2) you will find two high quality Saramonic DK3 tie microphones, which you will plug into the transmitters using lockable plugs. This connection makes it very difficult to accidentally unplug the cable from the socket. The microphones have been designed specifically with voice recording in mind, ensuring clear and full sound. The omnidirectional characteristic allows the sound to be picked up in 360º ensuring broadcast quality audio.

Revolutionary “talkback” function

Creating your own YouTube show? Doing interviews in the studio or in the field? Or maybe you record reports or reports for television? If you happen to work with a cameraman as a person in front of the camera, you surely know how important your communication is. The Saramonic Vlink2 Wireless Audio Transmission Kit will help take this to an even higher level! You can easily connect the headphones to the transmitters, and the headphone with microphone included in the set to the receiver. This will enable two-way voice communication even when you are 100 metres away from the camera! Advice, hints, suggestions related to the realisation of the live material, questions, answers and constant contact between the presenter and the operator, producer or sound engineer – all this in complete discretion and without recording the sound coming out of the microphone plugged into the receiver! “Talkback” is a long-awaited innovation that redefines what professional recording is.

Full control of recordings

Both the receiver and transmitters feature easy-to-read backlit OLED screens with high contrast. No matter what the lighting conditions, the displays allow you to conveniently control the microport settings, as well as parameters such as range or battery level. You can also connect headphones to the receiver for professional, real-time listening. The ability to monitor recorded interviews, conversations and speeches will help you catch crackles, noises or unwanted sounds that are often impossible to hear when working without monitoring. Listening is also the best way to eliminate mistakes or slip-ups. By monitoring your recordings with headphones you have more control over the material you are making!

MONO and STEREO mode

There are “+/-” buttons on both the Vlink2 TX transmitters and the Vlink2 RX receiver. Thanks to them you can conveniently set the signal level adapted to your needs. In the receiver you can also switch between STEREO or MONO recording. This way, you can always choose the type of signal to match your hardware configuration and the needs of your project.

Up to 20 hours of operation

When working with the Saramonic Vlink2 wireless audio kit, you don’t have to worry about buying batteries or packing spare cells in your bag. The microports are equipped with built-in rechargeable batteries, which will ensure uninterrupted operation throughout the shooting day. With a maximum runtime of 20 hours for the transmitters and 19 hours for the receiver, even if you’re recording a 24-hour stream, you can rest easy! The devices can easily be connected to a charger or power bank for an extra boost!

Stable connectivity

Digital data transmission in the waveband from 2404 to 2476 MHz is a guarantee of comfortable work with sound, without any problems with the signal. If you’re recording outdoors, the transmitter and receiver can be as close as 100 metres apart, and the sound will still not be affected by interference. You’ll also find special antennas included, which can be positioned 360º when connected to the microports. They can also be detached from the transmitters and receiver at any time for safe and convenient transport.

Specification

• Model: Saramonic Vlink2 (Kit2)

Vlink2 RX receiver

• modulation: GFSK

• supported frequencies: 2.4 GHz (2404 – 2476 MHz)

• Range: up to 2.4 GHz

• range: up to 100 m

• Audio jacks (compatible with TRS and TRRS standards):

  • mini Jack 3.5 mm line out

  • mini Jack 3.5 mm line in

  • 3.5 mm mini Jack output (supporting headphones and microphone)

  • Microphone input (supporting headphones and microphone)

  • battery: built-in (3000 mAh)

  • operating time on a single charge: 19 hours

  • power supply:

    • built-in rechargeable battery (Li-ion)

    • USB-C DC 5 V (possibility of working with power bank)

    • Power supply

  • Signal-to-noise ratio: > 75 dB

  • signal level for headphone listening: 30mW (32 Ω)

  • Radio frequency output level: <10mW

  • bandwidth: 35 Hz – 18 kHz

  • Dimensions: 88 x 69 x 23 mm

  • Weight: 187 kg

  • Dimensions: 88 x 69 x 23 mm

  • Weight: 187 kg

  • weight: 189 g

  Vlink2 TX Transmitter

  • Transmitter

    • modulation: GFSK

    • supported frequencies: 2.4 GHz (2404 – 2476 MHz)

    • Range: up to 2.4 GHz

    • range: up to 100 m

    • Audio jacks:

      • headphone output mini Jack 3.5 mm

      • headphone jack

      • mini Jack 3.5 mm input (MIC IN / LINE IN)

      • battery: built-in (2000 mAh)

      • operating time on one charge: 20 hours

      • power supply:

        Kit contents

        • built-in rechargeable battery (Li-ion)

        • USB-C DC 5 V (possibility of working with power bank)

        • Power supply:

          • built-in rechargeable battery (Li-ion)

          • based on DC 5 V

        • Signal-to-noise ratio: > 75 dB

        • tie microphone sensitivity: – 40 dB

        • signal level for headphone listening: 30mW (32 Ω)

        • broadcast output level: <10mW

        • bandwidth: 35 Hz – 18 kHz

        • Dimensions: 70 x 52 x 23 mm

        • Weight: 121 g

        • weight: 121 g

        • 1 x Vlink2 RX receiver

        • 2 x Vlink2 TX transmitter

        • 2 x Saramonic DK3 tie microphone

        • 1 x headset

        • 1 x headset with microphone (“talkback” + monitoring)

        • 3 x USB-C / USB-A cable (charging)

        • 1 x Mini Jack 3.5mm TRS cable with lock (camera connectivity)

        • 1 x Mini Jack 3.5 mm TRRS cable with lock (smartphone connectivity)

        • 1 x adapter to allow you to connect to your camera

        • 1 x adapter for mounting the receiver on the cold shoe

        • 4 x detachable antenna

        • 3 x bracket allowing the microport to be mounted on a belt

        • 1 x carrying case

        • 1 x carrying case

    •
