Monitor»VILTROX»Viltrox DC-70 PRO 4KSDI Monitor 7"»(new)

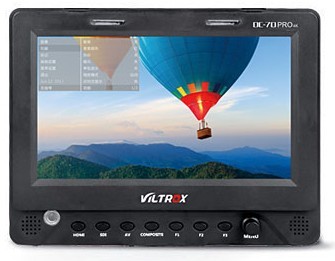

Viltrox DC-70PRO is a portable 7” LCD monitor which can help you shoot high quality photos. It can provide excellent
high definition picture quality. Apart from it, it also featuring great flexibility and portability. It is perfectly used for:
Seminar, Out door real time broadcasting, Recording of digital movie, on site production, Editing, Monitoring and
recording in R&D.
○ Viltrox DC-70PRO Clip-on LCD Monitor adopts with 7-inch TFT high resolution LCD panel, is loaded with pro-style
features to help photo enthusiasts and video-graphers shoot high-quality HD video footage with their Interchangeable
Lens Digital camera.
◎ There is also pixel magnification and peaking facility which will ensure accurate focus confirming, give an enlarged
pixel-perfect view of a selected portion of the Full HD image.
Feature
◇ Wide viewing angle LCD screen
◆ Support HDMI / SDI / AV / YPbPr / Tally signal input
Support HDMI / SDI / AV signal output
◇ Featuring multiple function settings like peaking and histogram、
Volume Bar、false color and monochrome ,etc
◇ Controls camera shutter release, ensure long-distance monitoring
◆ When using the camera with hot shoe, the hot shoe adapter can be disassembled easily.
◇ Works with rechargeable battery or AC adapter.
◆ Can play video lively, and can adjust the picture and voice at the same time.
HDMI cable connection:
Attaching the battery:
Description
This product is carried with multi professional functions like peaking focus, false color, monochrome display,
luminance histogram and volume bar,etc. These professional functions can help photographers focus more
accurate and faster and provide more perfect zoom function on the selected area of the full HD image.
Histogram |
Volume Bar |
Waveform |
Monochrome:Red |
Monochrome:Greed |
Monochrome:Blue |
Specification
LCD Display |
Product Color |
Black |
Screen |
7 inches |
|
Resolution |
1920×1200 Pixel |
|
Input Jack |
HDMI / SDI / AV / TALLY |
|
Output Jack |
HDMI / SDI |
|
Audio |
Loudspeaker, headphone port 3.5 |
|
Firmware upgrade |
USB upgrade port |
|
Power supply |
DC IN input ( power port ) , XLR port |
|
Working temperature |
Power Adapter |
DC 8V-18V |
Battery |
NP-F550/F570/F750/F770/F960 |
|
Operating temperature |
+0 to +40°C (+32 to +104°F) |
|
Storage temperature |
-20 to +60°C (-4 to +140°F) |
|
Dimension |
Approx. 191×148×45mm |
|
Weight |
Approx. 690g (excluding battery) |
|
Accessories supplied |
Hot shoe * 1 Sun shade hood *1 Pouch*1 HDMI cord Type A-Type C *1 HDMI Type D ( HDMI A-Micro HDMI ) *1 |
|
Functional diagram
1. Indicator light
2. HDMI signal button
3. SDI signal button
4. AV signal button
5. Composite signal button
6. F1 shortcut
7. F2 shortcut
8. F3 shortcut
9. Menu button
10. USB upgrade port
11. AV input port
12. Headphone port
1. HDMI input port
2. HDMI output port
3. Battery release lever
4. TALLY input port
5. Power switch
6. DC 12V Power Input
7. XLR Port
8. SDI input/output port
- Color: black
- Warranty: 24
- Displey Size: 7"
- Full HD: yes
- 4K: yes
- HDMI: yes
- Monitor: yes
- Display Resolution: 1920 x 1200
