Monitor»VILTROX»Viltrox DC-70 EX 7" HD Monitor with SDI»(new)

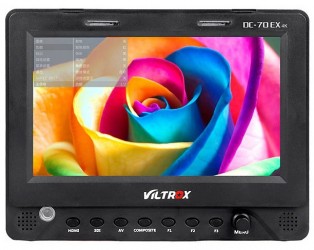

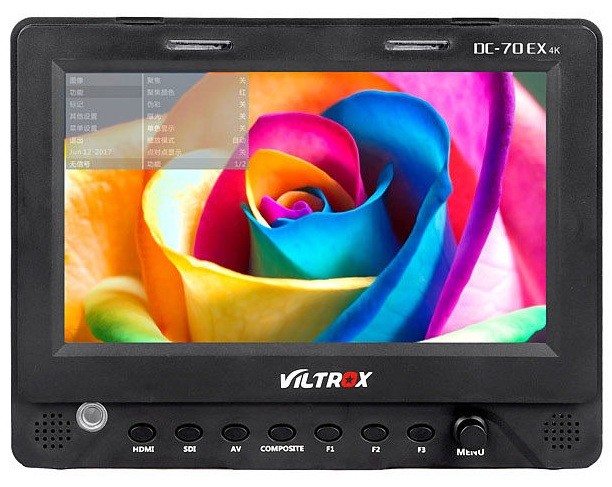

Viltrox DC-70EX is a portable 7” LCD monitor which can help you shoot high quality photos. It can provide excellent
high definition picture quality. Apart from it, it also featuring great flexibility and portability. It is perfectly used for:
Seminar, Out door real time broadcasting, Recording of digital movie, on site production, Editing, Monitoring and
recording in R&D.
Feature
* Several HDMI, AV ports, Wide viewing angle LCD screen.
* It can show the exposure and area accurately.
* With headphone stereo output.
* 16:9 / 4:3 / full screen display
* It can used for HDMI port, AV port and Live View.
* Powered by rechargeable batteries or AC outlet with AC/DC adapter.
* It can show the HDMI video signal from camera.
HDMI cable connection:
 |
 |
 |
Attaching the battery:
 |
 |
 |
Description
This product is carried with multi professional functions like peaking focus, false color, monochrome display,
luminance histogram and volume bar,etc. These professional functions can help photographers focus more
accurate and faster and provide more perfect zoom function on the selected area of the full HD image.
|
Histogram |
Volume Bar |
Waveform |
|
Monochrome:Red |
Monochrome:Greed |
Monochrome:Blue |
Specification
|
Type |
VILTROX DC-70 EX Monitor |
|
LCD Dispaly |
7 inches |
|
Resolution |
1024 × 600 Pixel |
|
Input Jack |
HDMI / SDI / AV / YPbPr / TALLY signal input |
|
Output Jack |
HDMI / SDI / AV signal output |
|
Audio |
Loudspeaker, headphone port 3.5 |
|
Power supply |
DC IN input ( power port ), XLR port |
|
Power Adapter |
DC 8V-18V |
|
Battery |
NP-F550 / F570 / F750 / F770 / F960 series |
|
Operating temperature |
+0 to +40°C (+32 to +104°F) |
|
Storage temperature |
-20 to +60°C (-4 to +140°F) |
|
Software upgrade |
USB upgrade port |
|
Dimension |
Approx. 191×148×45 mm |
|
Weight |
Approx.690g ( include Sun shade hood,excluding battery ) |
|
Accessories supplied |
Hot shoe * 1 Sun shade hood *1 |
|
HDMI cord Type A-Type C *1 HDMI Type D ( HDMI A-Micro HDMI ) *1 |
Functional diagram
1. Indicator light
2. HDMI signal button
3. SDI signal button
4. AV signal button
5. Composite signal button
6. F1 shortcut
7. F2 shortcut
8. F3 shortcut
9. Menu button
10. USB upgrade port
11. AV input port
12. Headphone port
1. HDMI input port
2. HDMI output port
3. Battery release lever
4. TALLY input port
5. Power switch
6. DC 12V Power Input
7. XLR Port
8. SDI input/output port
- Color: black
- Warranty: 24
- Displey Size: 7"
- Full HD: yes
- HDMI: yes
- Monitor: yes
- Display Resolution: 1024 x 600
