Monitor»FEELWORLD»FEELWORLD 4K 5,7" F6 HDMI-INPUT MONITOR»(new)
Specification |
||
Description |

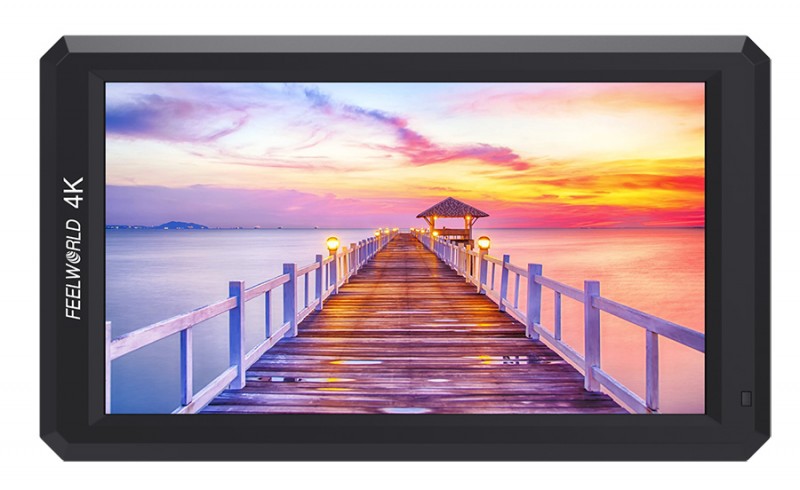

5.7" IPS 1920x1080 Full HD 4K HDMI On-camera Monitor with Histogram, Focus Assist |
|
Model |
F6 |
|
Screen size |
5.7" IPS |
|
Display Colors |
16.7M (8 bit) |
|
Resolution |
1920x1080 pixels |
|
Dot pitch |
0.0657 (H) × 0.0219 (W)mm |
|
Aspect Ratio |
16:9 |
|
Brightness |
460cd/m2 |
|
Contrast |
1400:1 |
|
Backlight |
LED |
|
Viewing Angle |
85°/85°(L/R) 85°/85°(U/D) |
|
Input |
HDMI, DC In |
|
Power Output |
DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) |
|
Response Time |
32ms |
|
Audio |
Stereo Headphone |
|
HDMI Support Format |
480i/576i/480p/576p |
|
1080i (60/59.94/50) |
||
720p (60/59.94/50/30/29/25/24/23.98) |
||
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
||
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
||
Power Consumption |
?8W |
|
Input Voltage |
DC7 ~24V |
|
Power Connector |
DC |
|
Operating Temperature |
-20°C ~ 55°C |
|
Storage Temperature |
-30°C ~ 65°C |
|
Install Way |
(3) 1?4-20 thread points (top, bottom, & right side) |
|
Unit Size |
154Lx90Hx23D (mm) |
|
Unit Weight |
200g |
|
Advanced Features |
||
*Histogram |
||
*Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
||
*False Colors |
||
*Zebra Exposure (1-100IRE adjustable) |
||
*Camera Mode |
||
*Anamorphic Mode (1.3X, 2.0X, 2.0X MAG) |
||
*Center Marker |
||
*Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1) |
||
*Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) |
||
*Marker Color (Red, Green, Blue, White, Black) |
||
*Check Field (Red, Green, Blue, Mono) |
||
*Image Flip (H, V, H/V) |
||
*Image Freeze |
||
*Color Temperature Adjustment |
||
*Nine Grid (Zoom one of the images to realize the full screen) |
||
*Zoom (4X, 9X, 16X) |
||
*Aspect Ratio |
||
*Pixel to Pixel |
||
*Zoom All |
||
*U/D Zoom |
||
*L/R Zoom |
||
- Color: black
- Warranty: 24
- Displey Size: 5,7"
- Full HD: yes
- 4K: yes
- HDMI: yes
- Monitor: yes
- Display Resolution: 1920 x 1080
