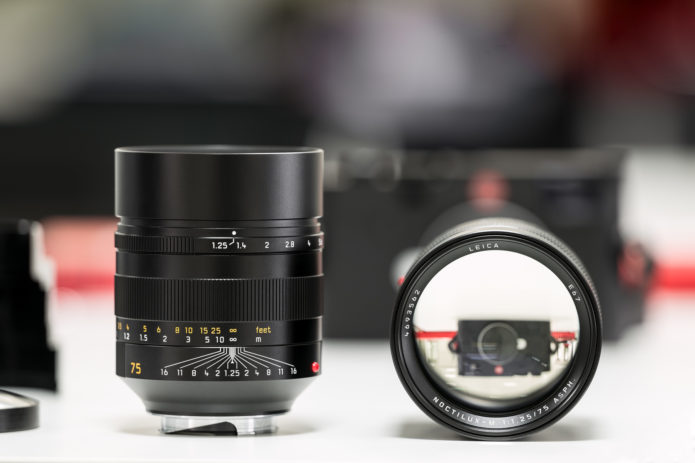

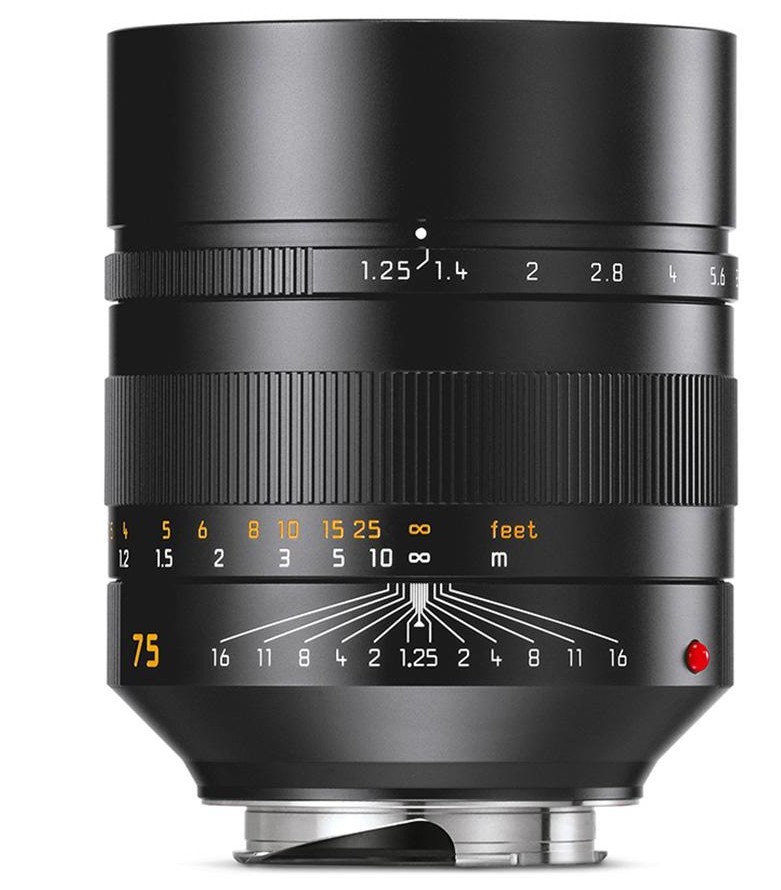

NOCTILUX-M 75 MM/ 1.25 ASPH BLACK

The features of the Noctilux-M 75 mm f/1.25 ASPH. open up entirely new opportunities in portrait and close-up photography, including a shallower depth of focus than that of the Noctilux-M 50 mm f/0.95 ASPH. and a close focusing distance of 0.85m, making for a reproduction ratio of 1:8.8 for even more precise isolation of subjects.

Its focal length of 75 mm makes it especially suitable for the creation of portraits with a natural look. Additionally, the eleven blades of its iris ensure a soft and harmonious bokeh in out-of-focus areas.

The Noctilux-M 75mm f/1.25 ASPH. features the convenience of an integrated lens hood, which can be extended or retracted in one simple twist. The lens is complemented by a tripod adapter for safe and secure mounting of the lens on a tripod.

To guarantee this extraordinary imaging performance, the nine elements in six groups that make up its optical design are manufactured from glasses with high anomalous partial dispersion and low chromatic dispersion. Two of the elements are asphericals and reduce other potential aberrations to a hardly detectable minimum. Here, particular emphasis must be placed on the use of a floating element within the complex focusing mechanism, which guarantees a constantly high level of imaging performance throughout the entire focusing range of the lens – from the closest focusing distance to infinity.

When shooting at maximum aperture, the exceptionally shallow depth of focus of the Noctilux-M 75 mm f/1.25 ASPH. can be used to particularly effect with the aid of an electronic viewfinder such as the Leica Visoflex. What’s more, the Leica M-Adapter L transforms the Noctilux-M into an excellent lens for use on the Leica SL. When the lens is mounted on the Leica SL, the 4.4 million pixel resolution of the camera’s EyeRes® electronic viewfinder enables particularly comfortable and extremely precise focusing.

Technical data:

Lens Leica Noctilux-M 75mm f/1.25 ASPH.

Angle view (diagonal, horizontal, vertical) For 35 mm (24 x 36 mm): approx. 32/27/18,

for M8: approx. 24/20/14

Optical design Number of elements/groups: 9/6

Entrance pupil for bayonet: 26.9mm

Focusing range: 0.85 m to in nity

Distance setting Scala: combined meter-/feet-increments

Smallest object eld: for 35 mm: 212 x 318 mm; for M8: 159 x 238 mm

Highest reproduction ratio: 1:8.8

Diaphragm Setting/type: preset, with click-stops, half values available

Smallest aperture: f/16

Number of aperture blades: 11

Bayonet Leica M quick-change bayonet

Filter thread E67

Lens hood Integrated

Dimensions and weight Lenghth: approx. 91/102mm (without/with extended lens hood)

Diameter: approx. 74mm

Weight: approx. 1055 g
