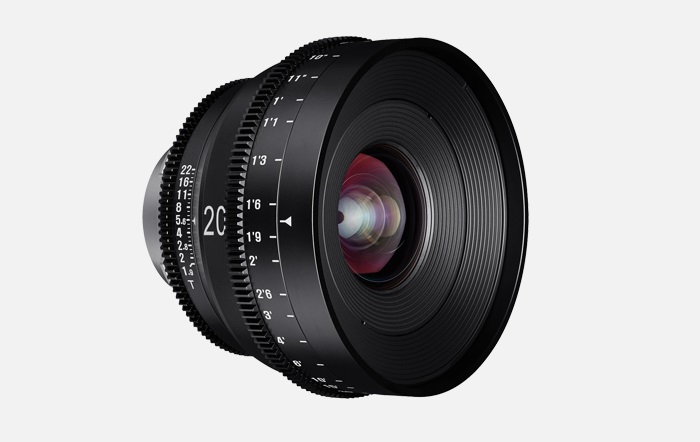

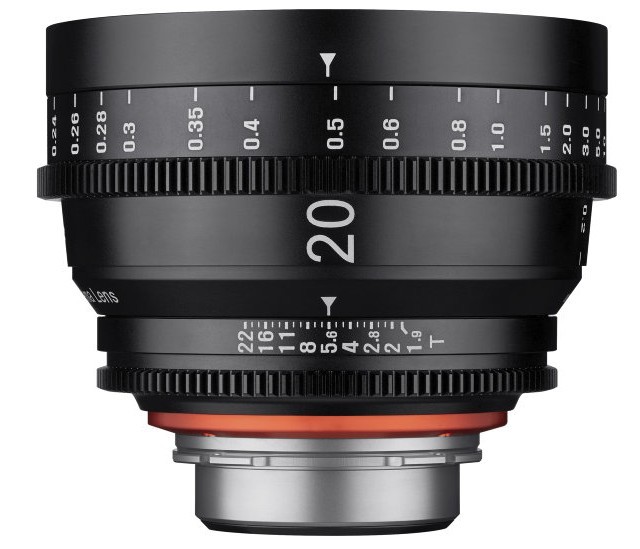

Cinema Lens»SAMYANG»SAMYANG XEEN 20MM T1.9 FF CINE for PL mount»(new)
Expand your video and filmmaking experiences with XEEN cinema lenses. With a T1.9 and outstanding optical performance for 4K+, focus on the Mise-en-scène of the images you want to create.
XEEN lenses feature declicked gear rings in identical locations, so that changing lenses is no longer a hassle. Mounts are interchangeable, meaning each lens can be used on a variety of cameras. The XEEN series aims to delivers unparalleled performance with affordability to satisfy the needs of videographers and filmmakers, regardless of the situation or equipment.
- Bright aperture of T1.9 for low-light situations
- Outstanding optical performance for 4K+
- Calibrated focus for exceptional image quality
- Focus and aperture gear rings in standardized positions
- 5 interchangeable mounts (PL, EF, F, E and MFT)
- X-Coating Technology sharpness and contrast
- Full-frame coverage (36x24mm)
- Declicked gear rings for follow-focus system
- Reliable aluminum metal housing
- Calibrated focus scales in metric or imperial units
- Consistent front diameter for professional cinema production
Specifications
| Focal length | 20 mm | |||||
| Maximum T-stop | T1.9 | |||||
| Negative size | 24 mm X 36 mm | |||||
| ANGLE OF VIEW | Full Frame(1:1x) | 94.82˚ | ||||
| Super 35 | 75.31˚ | |||||
| APS-C (1:1.5x) | 70.26˚ | |||||
| APS-C (1:1.6x) | 66.94˚ | |||||
| MFT (1:2x) | 56.06˚ | |||||
| Focusing range | ∞ to 0.20 m | |||||
| Front Size | Φ114 mm | |||||
| Number of blades | 11 | |||||
| Mount | PL | Canon EF | Nikon F | Sony E | MFT | |
| Size | Φ 117,6mm x 87,3 mm | Φ 117,6 mm x 95,3 mm | Φ 117,6 mm x 92,8 mm | Φ 117,6 mm x 121,3 mm | Φ 117,6 mm x 120,1 mm | |
| Weight (without Lens cap) | 970 g | 1010 g | 935 g | 990 g | 1000 g | |
| Angle | Focus angle | 200° | ||||
| Iris angle | 37.5° | |||||
- Camera-Mount: PL-Mount
- Sensor Size": FF (Full frame)
- Color: black
- Dimensions cm ( D x L ): 8,73 x 11,76
- Weight (gr.): 970
- Minimal Focus Distance ( m ): 0,5
- Focal Length (35mm eqv.): 20
- Manual Focus: yes
- AF/MF type: Only MF
- Aperture Ring: yes
- Lens Type: wide
- Diaphragm Blades: 11
- Angle of View: 106.9°
- For FF (Full frame): yes
- For APS-C: yes
- Warranty : 24
- 4/3": yes
- For Professionals: yes
- Super 35: yes
- Models: XEEN
